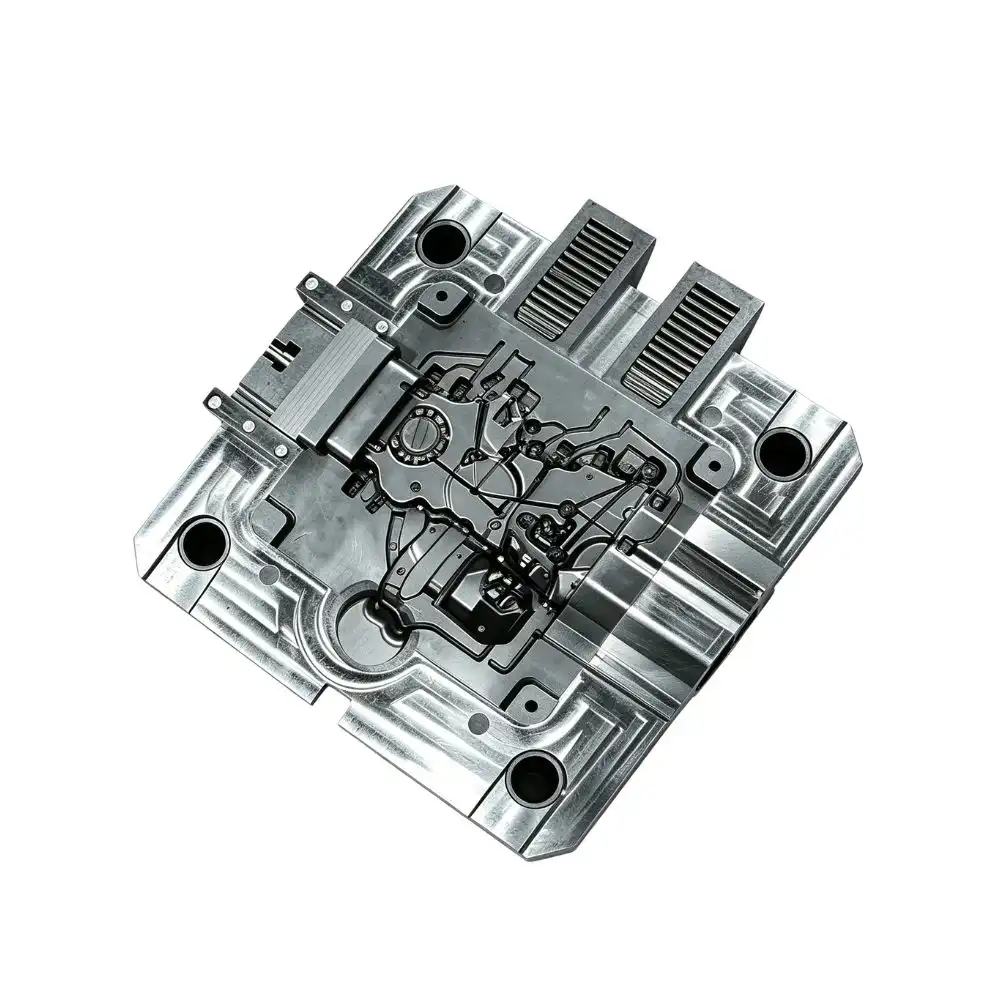

Automotive Timing Cover Die Casting Mold
Moldie designs and builds die casting molds for automotive engine timing cover programs. We deliver production-ready mold tooling matched to your drawings and casting process, with attention to sealing faces, mating interfaces, parting, and tryout feedback.
What this mold is for

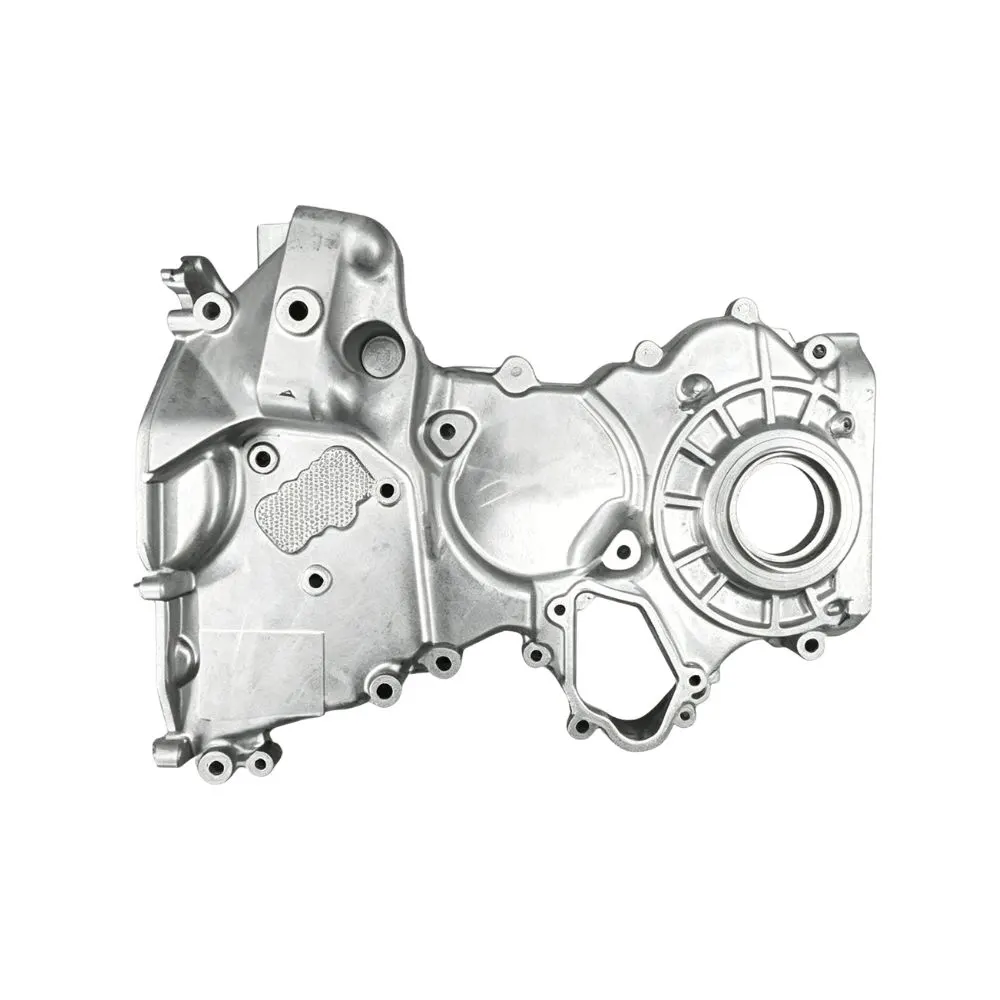

This page covers mold tooling for automotive engine timing cover programs. Typical discussions include cover geometry, sealing faces to the engine block or related housings, mating features, parting line strategy, and tryout sample review. Casting alloy choice (aluminum alloys as specified for the part) is separate from mold steel selection for the die.
Tooling scope
- DFM review focused on timing cover sealing faces, mating features, and machining stock
- Mold design: parting, gating, runners, overflow, venting, and ejection for engine cover parts
- CNC machining of cavities/cores, fitting, and assembly
- Tryout support and dimensional feedback for first samples
Materials note
Part alloy (aluminum alloys such as ADC12, A380, or AlSi grades as specified for the part) and mold steel (tool steel with appropriate hardness for die casting dies) are specified separately. Do not treat part-alloy hardness or surface treatments as mold-steel heat treatment.
Ask for a quote with drawings, alloy, press tonnage, annual volume, and inspection requirements. Related: die casting molds and mold design & engineering.
