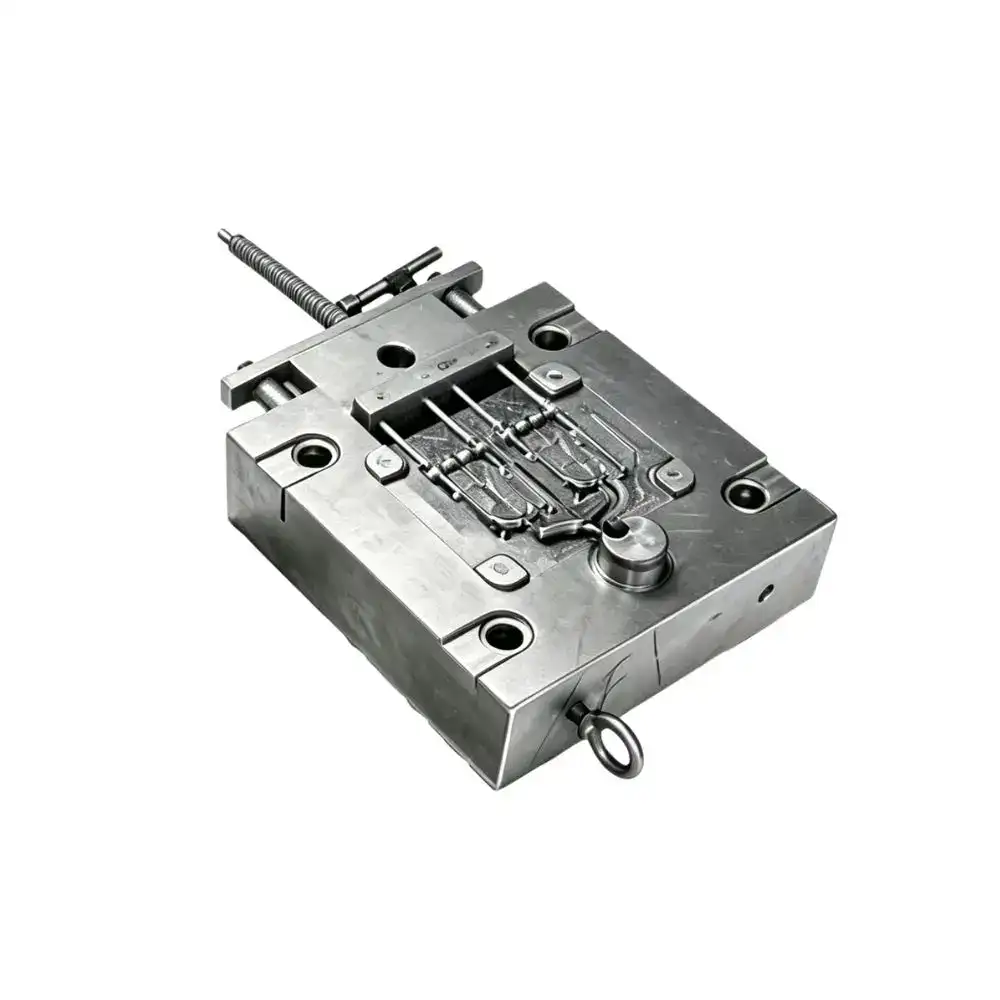

Zinc Die Casting Mold for Automotive OEM Components
Moldie designs and builds zinc die casting molds for automotive OEM component programs. We deliver production-ready mold tooling matched to OEM drawings, with attention to automotive sample approval loops and component-level DFM for zinc alloys.
What this mold is for
This page covers zinc die casting mold tooling for automotive OEM components. Typical discussions include OEM drawing packages, small-feature zinc fill considerations discussed qualitatively, and tryout review. Part alloy (zinc as specified) and mold steel are specified separately.
Tooling scope
- OEM-oriented DFM review for zinc automotive component geometry and machining stock
- Mold design: parting, gating, runners, overflow, venting, and ejection for zinc OEM cavities
- CNC machining of cavities/cores, fitting, and assembly
- Tryout support with dimensional feedback aligned to automotive OEM sample review
Materials note
Part alloy (zinc alloys as specified for the part) and mold steel (tool steel with appropriate hardness for die casting dies) are specified separately. Do not treat part-alloy hardness or surface treatments as mold-steel heat treatment.
Ask for a quote with drawings, alloy, press tonnage, annual volume, and inspection requirements. Related: die casting molds and mold design & engineering.
