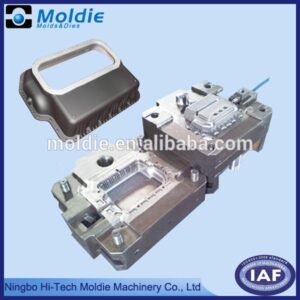

Die Casting Mold for Aluminum Boxes
Moldie designs and builds die casting molds specifically framed for aluminum box programs where the mold is the deliverable. We deliver production-ready tooling matched to box drawings, with DFM focused on box-type fill and ejection challenges.
What this mold is for
This page covers die casting molds for aluminum boxes as a mold-for-boxes offering. Discussions typically include how box depth, corner radii, and internal features affect parting and ejection. Part alloy and mold steel are specified separately.
Tooling scope
- DFM review focused on box depth, corners, and internal feature ejection
- Mold design: parting, gating, runners, overflow, venting, and ejection for box-type molds
- CNC machining of cavities/cores, fitting, and assembly
- Tryout support and dimensional feedback for box mold first samples
Materials note
Part alloy (aluminum alloys such as ADC12, A380, or AlSi grades as specified for the part) and mold steel (tool steel with appropriate hardness for die casting dies) are specified separately. Do not treat part-alloy hardness or surface treatments as mold-steel heat treatment.
Ask for a quote with drawings, alloy, press tonnage, annual volume, and inspection requirements. Related: die casting molds and mold design & engineering.
