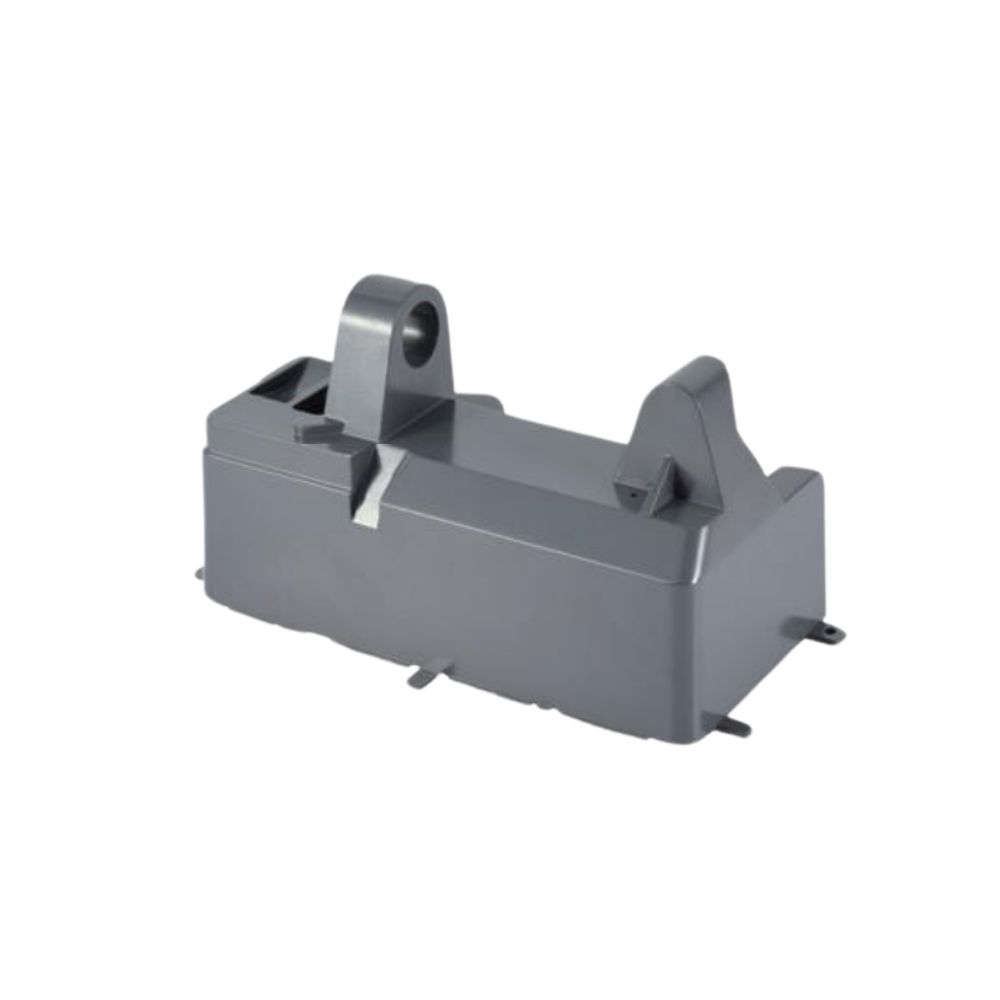

Pivot Support Block Die Casting Mold
Moldie designs and builds die casting molds for pivot support block assemblies. We deliver production-ready mold tooling matched to your drawings and casting process.
What this mold is for
This page covers mold tooling for pivot support block assemblies. Application details are confirmed per project from drawings and customer input. Casting alloy choice (as specified for the part) is separate from mold steel selection for the die.
Tooling scope
- DFM review for die casting flow, filling, and machining stock allowances
- Mold design: parting, gating, runners, overflow, venting, and ejection
- CNC machining of cavities/cores, fitting, and assembly
- Tryout support and dimensional feedback for first samples
Materials note
Part alloy (as specified on your drawings) and mold steel (tool steel with appropriate hardness for die casting dies) are specified separately. Do not treat part-alloy hardness or surface treatments as mold-steel heat treatment.
Ask for a quote with drawings, alloy, press tonnage, annual volume, and inspection requirements. Related: die casting molds and mold design & engineering.
