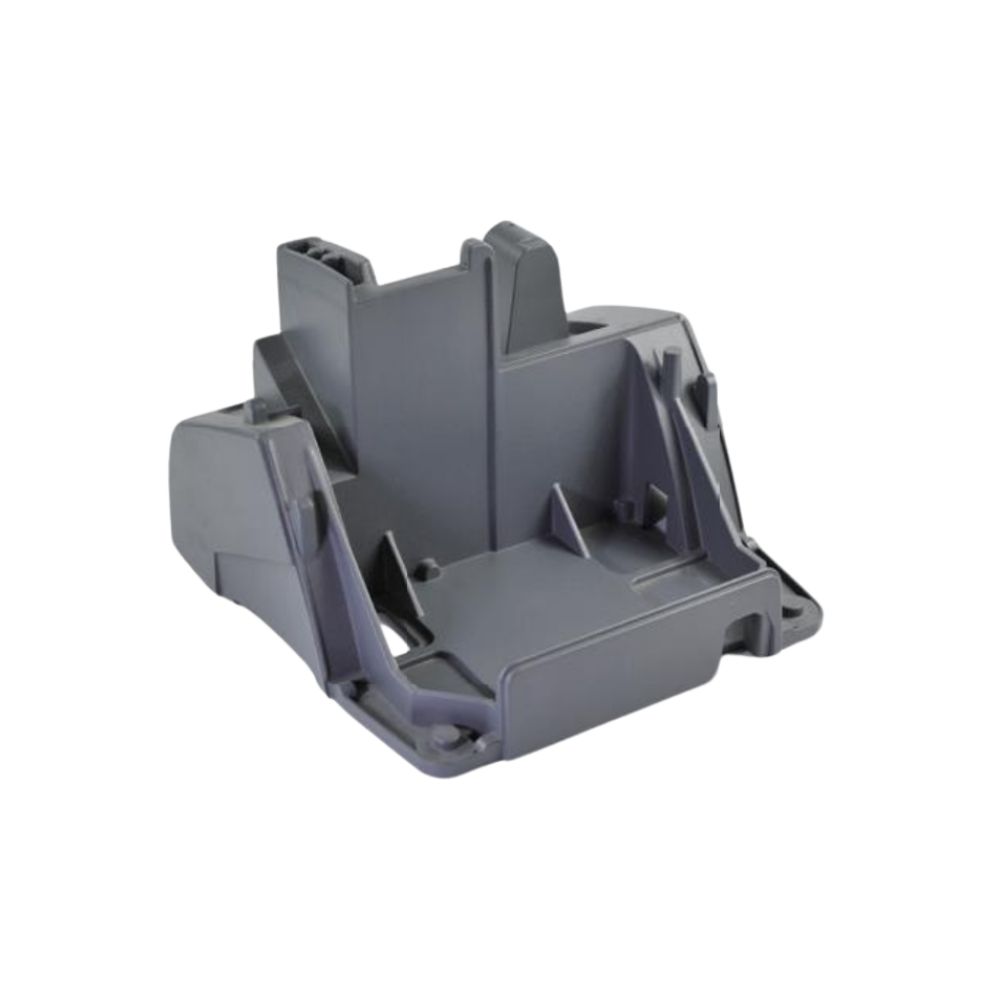

Aluminum Mounting Base Die Casting Mold
Moldie designs and builds die casting molds for aluminum mounting base components. We deliver production-ready mold tooling matched to your drawings, with attention to base flatness intent, bolt circles, and raised pads or bosses as specified.
What this mold is for
This page covers mold tooling for aluminum mounting bases. Typical discussions include base envelope, mounting hole patterns, mating to equipment, and tryout review. Casting alloy choice (aluminum alloys as specified for the part) is separate from mold steel selection for the die.
Tooling scope
- DFM review for mounting base pads, hole patterns, and machining stock
- Mold design: parting, gating, runners, overflow, venting, and ejection for base-type cavities
- CNC machining of cavities/cores, fitting, and assembly
- Tryout support and dimensional feedback for mounting base samples
Materials note
Part alloy (aluminum alloys such as ADC12, A380, or AlSi grades as specified for the part) and mold steel (tool steel with appropriate hardness for die casting dies) are specified separately. Do not treat part-alloy hardness or surface treatments as mold-steel heat treatment.
Ask for a quote with drawings, alloy, press tonnage, annual volume, and inspection requirements. Related: die casting molds and mold design & engineering.
