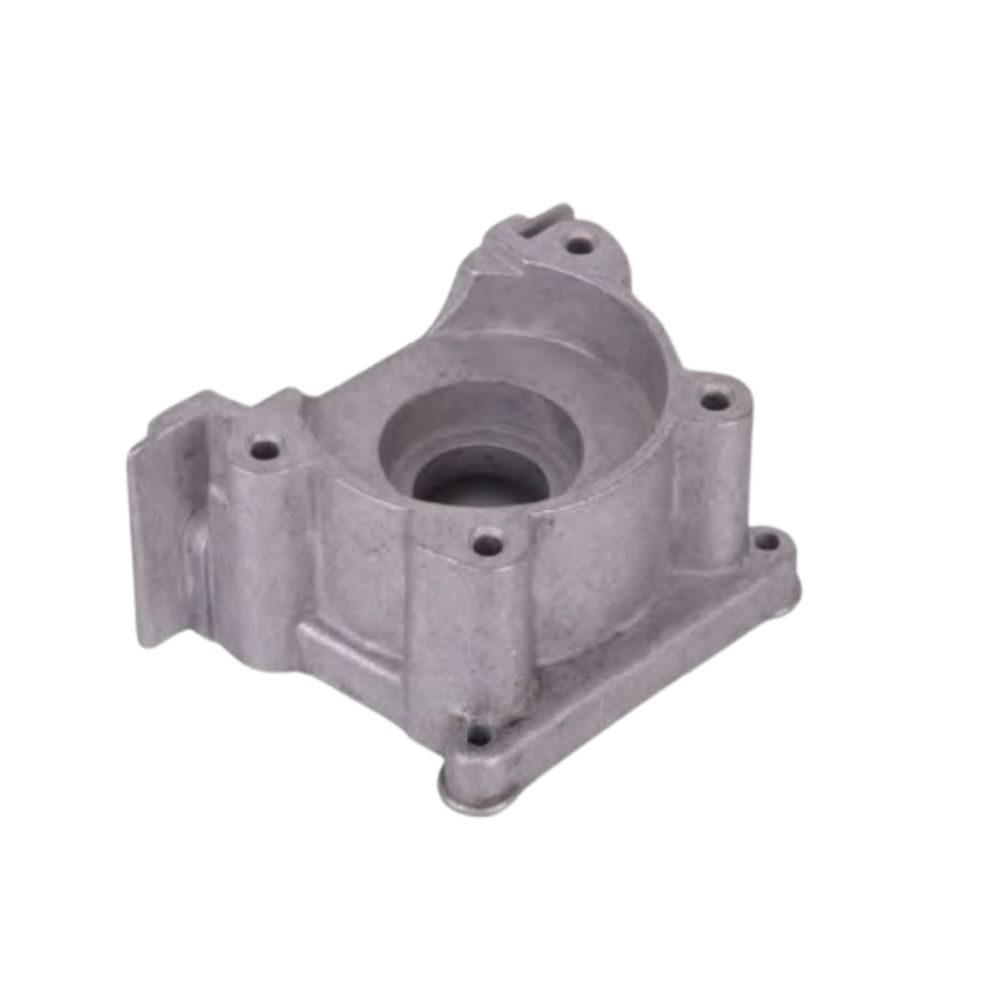

Lawn Mower Motor Mounting Bracket Die Casting Mold
Moldie designs and builds high pressure die casting (HPDC) molds for lawn mower / outdoor power equipment programs. We deliver production-ready mold tooling matched to your drawings and casting process.
What this mold is for
This page covers mold tooling for lawn mower / outdoor power equipment programs. Casting alloy choice (the casting alloy specified on your drawings) is specified for the part; mold steels, bolsters, and heat treatment are specified separately for the die.
Tooling scope
- DFM review for high pressure die casting (HPDC) flow, filling, and machining stock allowances
- Mold design: parting, gating, runners, overflow, venting, and ejection
- CNC machining of cavities/cores, fitting, and assembly
- Tryout support and dimensional feedback for first samples
Materials note
Part alloy (the casting alloy specified on your drawings) and mold steel (tool steel with appropriate hardness for die casting dies) are specified separately. Do not treat part-alloy hardness or surface treatments as mold-steel heat treatment.
Trade information (mold tooling)
| Mold Base Material | LKM C50, P20, cast iron, and more |
| Mold Standards | HASCO, DME, MISUMI |
| Insert Material | Dievar, H13, and more |
| MOQ | 1 set |
| Mold Lead Time | T1 sample, about 3–10 weeks, according to mold requirement |
| Mold Payment Term | 50% T/T deposit with PO, balance 50% T/T after sample approval |
| Port of Loading | Ningbo or Shanghai port |
Ask for a quote with drawings, alloy, press tonnage, annual volume, and inspection requirements. Related: die casting molds and mold design & engineering.
