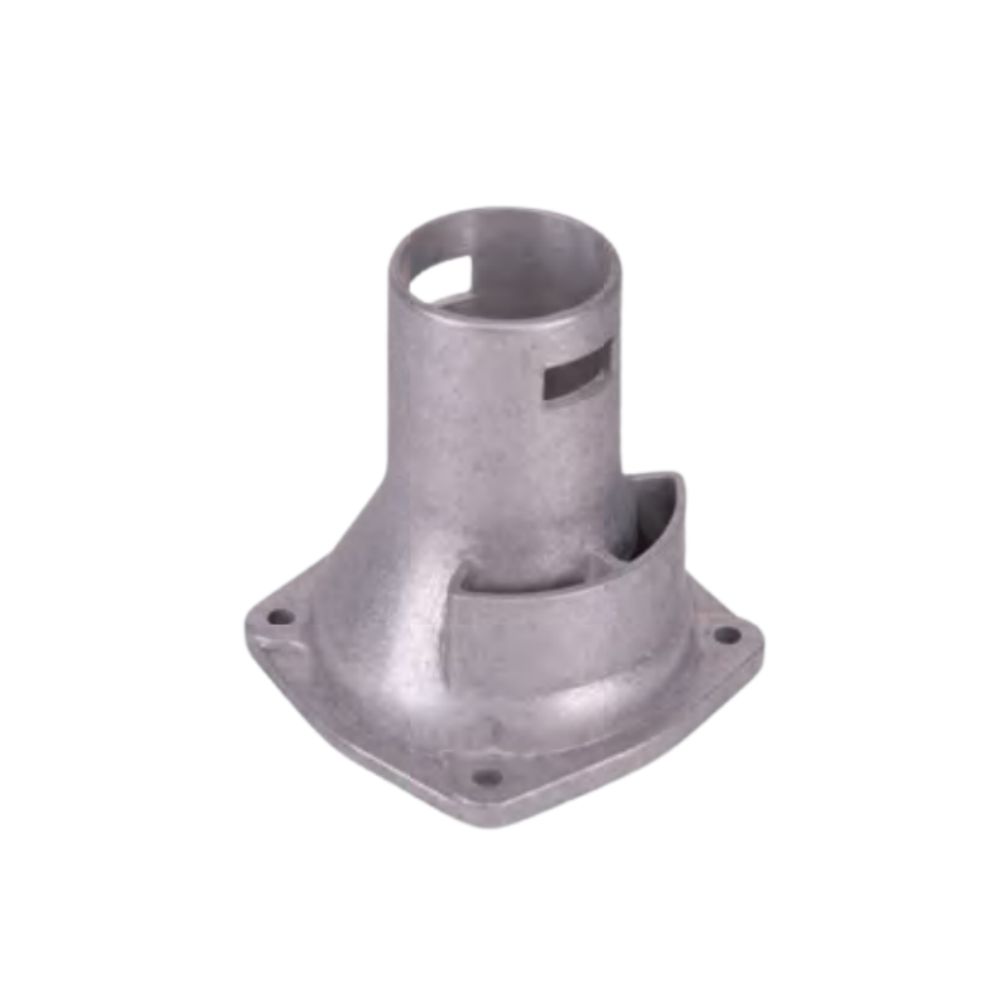

Lawn Mower Drive Shaft Housing Die Casting Mold
Moldie designs and builds die casting molds for lawn mower drive shaft protective housing components. We deliver production-ready mold tooling matched to your drawings, with attention to housing shells that guard rotating shafts, clearance to the shaft path, and mounting flanges as drawn.
What this mold is for
This page covers mold tooling for lawn mower drive shaft protective housings. Typical discussions include housing envelope around the shaft path, flange mounts, openings, and tryout sample review. Casting alloy choice (as specified for the part) is separate from mold steel selection for the die.
Tooling scope
- DFM review for drive-shaft housing clearance, flanges, and machining stock
- Mold design: parting, gating, runners, overflow, venting, and ejection for protective housing cavities
- CNC machining of cavities/cores, fitting, and assembly
- Tryout support and dimensional feedback for drive shaft housing samples
Materials note
Part alloy (aluminum alloys such as ADC12, A380, or AlSi grades as specified for the part) and mold steel (tool steel with appropriate hardness for die casting dies) are specified separately. Do not treat part-alloy hardness or surface treatments as mold-steel heat treatment.
Ask for a quote with drawings, alloy, press tonnage, annual volume, and inspection requirements. Related: die casting molds and mold design & engineering.
