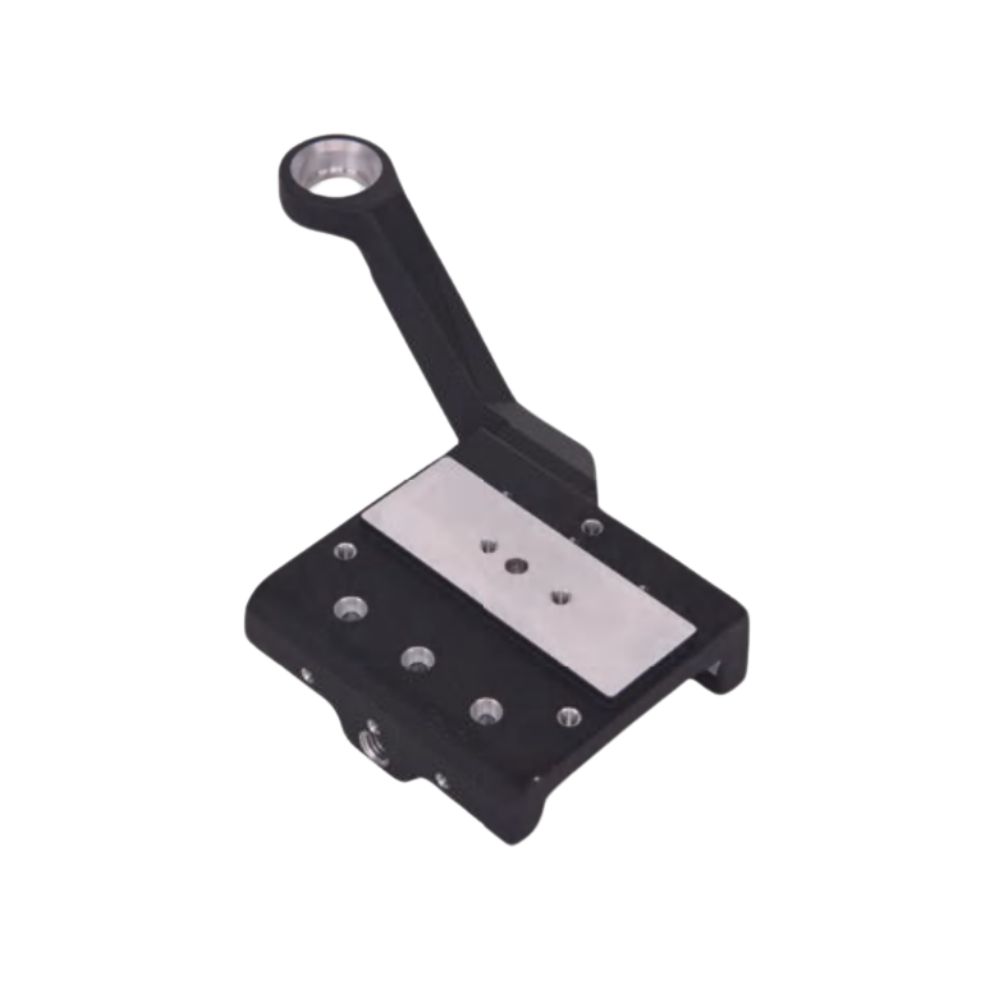

Aluminum Pivot Arm Bracket Die Casting Mold
Moldie designs and builds die casting molds for aluminum pivot arm bracket components. We deliver production-ready mold tooling matched to your drawings, with attention to pivot bore features, arm length geometry, and ejection around slender pivot arms.
What this mold is for
This page covers mold tooling for aluminum pivot arm brackets. Typical discussions include pivot bore intent on the drawing, arm ribs, clearance features, and tryout sample review. Casting alloy choice (aluminum alloys as specified for the part) is separate from mold steel selection for the die.
Tooling scope
- DFM review for pivot bore features, arm ribs, and machining stock
- Mold design: parting, gating, runners, overflow, venting, and ejection for pivot arm cavities
- CNC machining of cavities/cores, fitting, and assembly
- Tryout support and dimensional feedback for pivot arm bracket samples
Materials note
Part alloy (aluminum alloys such as ADC12, A380, or AlSi grades as specified for the part) and mold steel (tool steel with appropriate hardness for die casting dies) are specified separately. Do not treat part-alloy hardness or surface treatments as mold-steel heat treatment.
Ask for a quote with drawings, alloy, press tonnage, annual volume, and inspection requirements. Related: die casting molds and mold design & engineering.
