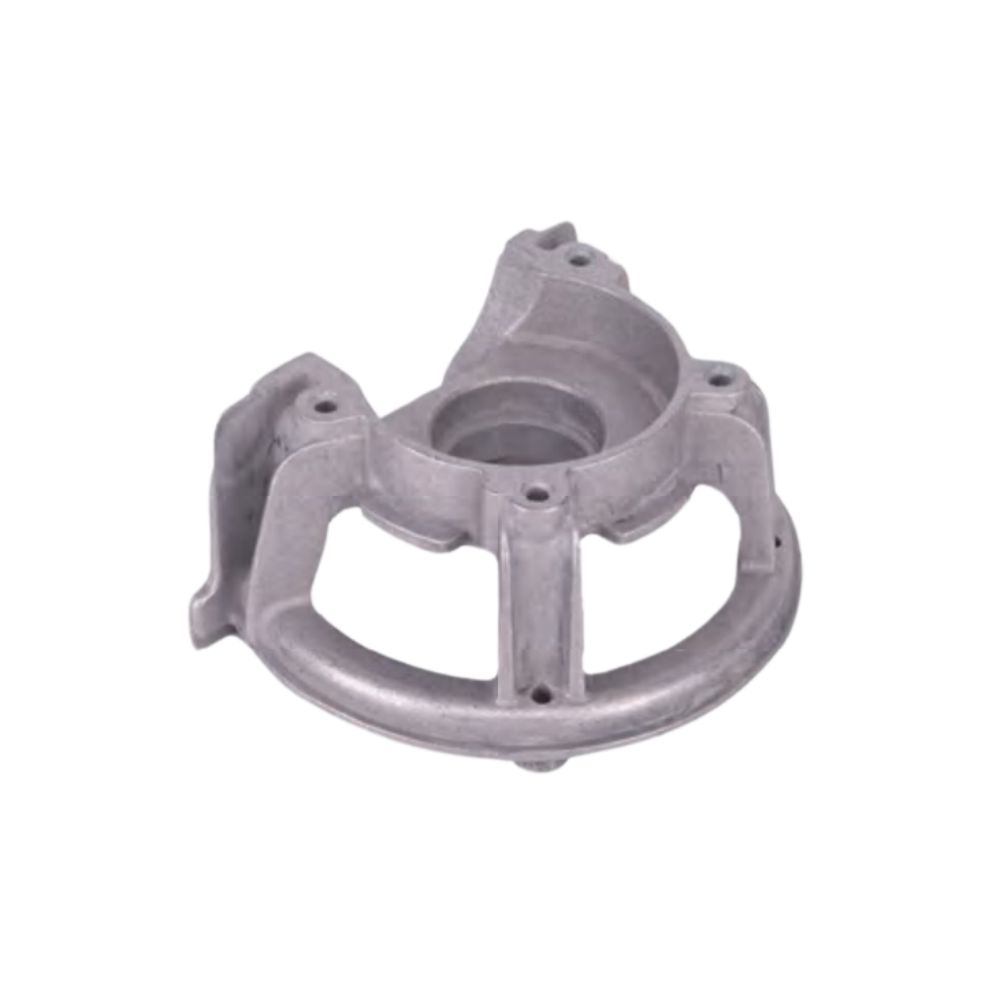

Lawn Mower Chassis Support Frame Die Casting Mold
Moldie designs and builds die casting molds for lawn mower chassis support frame components. We deliver production-ready mold tooling matched to your drawings and casting process, with attention to frame stiffness features, mounting points, and tryout feedback.
What this mold is for
This page covers mold tooling for lawn mower chassis support frames. Typical discussions include support span, mounting hole patterns, rib layout, and first-sample review. Casting alloy choice (as specified for the part) is separate from mold steel selection for the die.
Tooling scope
- DFM review for chassis support span, mounts, and machining stock
- Mold design: parting, gating, runners, overflow, venting, and ejection for frame-type cavities
- CNC machining of cavities/cores, fitting, and assembly
- Tryout support and dimensional feedback for chassis frame samples
Materials note
Part alloy (aluminum alloys such as ADC12, A380, or AlSi grades as specified for the part) and mold steel (tool steel with appropriate hardness for die casting dies) are specified separately. Do not treat part-alloy hardness or surface treatments as mold-steel heat treatment.
Ask for a quote with drawings, alloy, press tonnage, annual volume, and inspection requirements. Related: die casting molds and mold design & engineering.
