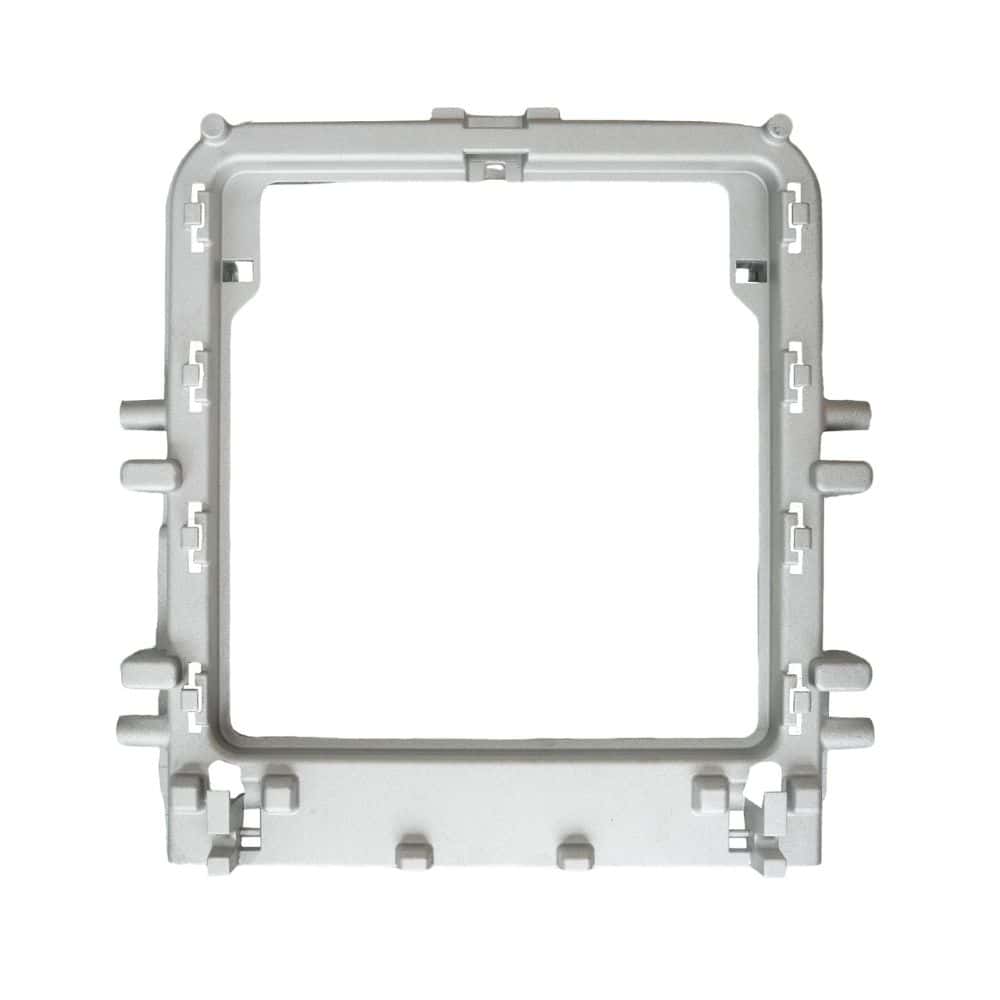

Magnesium Rail Frame Die Casting Mold
Moldie designs and builds magnesium die casting molds for rail-system frame components. We deliver production-ready mold tooling matched to your drawings, with attention to frame openings, stiffening structure, and magnesium fill/vent planning discussed qualitatively with engineering.
What this mold is for
This page covers mold tooling for magnesium rail-system frames. Typical discussions include frame size, open sections, ejection strategy, and tryout review. Part alloy (magnesium as specified) and mold steel are specified separately.
Tooling scope
- DFM review for magnesium rail frame openings, ribs, and machining stock
- Mold design: parting, gating, runners, overflow, venting, and ejection for frame cavities
- CNC machining of cavities/cores, fitting, and assembly
- Tryout support and dimensional feedback for rail frame samples
Materials note
Part alloy (magnesium alloys such as AZ91-class grades as specified for the part) and mold steel (tool steel with appropriate hardness for die casting dies) are specified separately. Do not treat part-alloy hardness or surface treatments as mold-steel heat treatment.
Ask for a quote with drawings, alloy, press tonnage, annual volume, and inspection requirements. Related: die casting molds and mold design & engineering.
