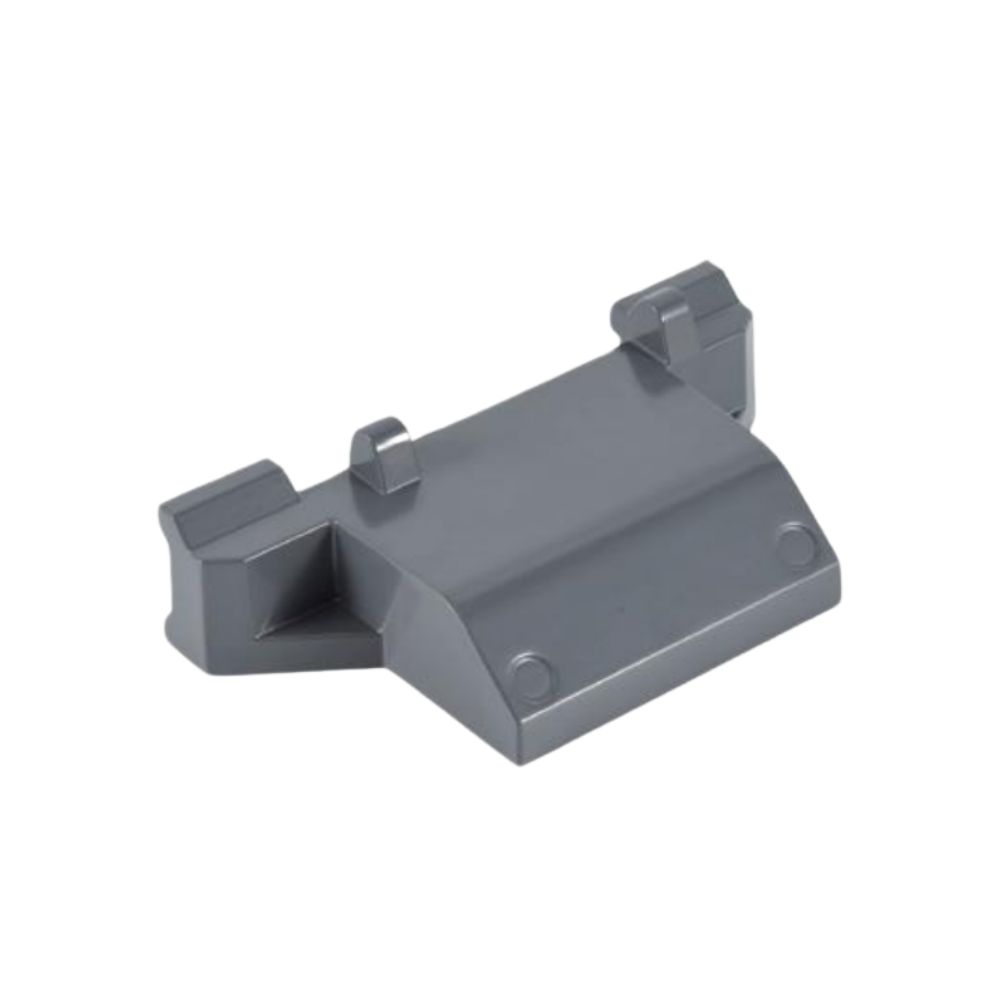

Aluminum Feeder Support Bracket Die Casting Mold
Moldie designs and builds die casting molds for aluminum feeder support bracket components. We deliver production-ready mold tooling matched to your drawings, with attention to support arms, feeder interface features, and mounting pads as drawn.
What this mold is for
This page covers mold tooling for aluminum feeder support brackets. Typical discussions include bracket load path, feeder interface geometry, fastener patterns, and tryout sample review. Casting alloy choice (aluminum alloys as specified for the part) is separate from mold steel selection for the die.
Tooling scope
- DFM review for feeder support arms, interface pads, and machining stock
- Mold design: parting, gating, runners, overflow, venting, and ejection for support bracket cavities
- CNC machining of cavities/cores, fitting, and assembly
- Tryout support and dimensional feedback for feeder support bracket samples
Materials note
Part alloy (aluminum alloys such as ADC12, A380, or AlSi grades as specified for the part) and mold steel (tool steel with appropriate hardness for die casting dies) are specified separately. Do not treat part-alloy hardness or surface treatments as mold-steel heat treatment.
Ask for a quote with drawings, alloy, press tonnage, annual volume, and inspection requirements. Related: die casting molds and mold design & engineering.
